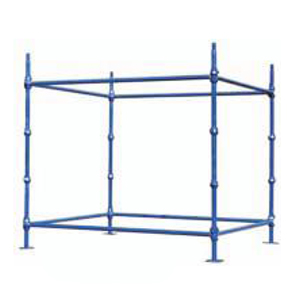

Medium class confirming to IS 1161/1239. Vertical Members
available in length of 3 mtr, 2.5 mtr, 2.0 mtr, 1.5mtr & 1mtr. Cups provided
at 500mm c/c or 1000mm c/c, stagnent bottom cups welded are made from
forged high quality steel. while movable top cups are made from malleable cast iron.
spigot which usually are of 150mm long are provided to make assembly easy.
we also provide (2, 3 & 6 cups for 3mtr verticals) as per customer requirements.
CUPLOCK LEDGER PLATE / TRANSOM (HORIZONTALS)
Made Out of 50mm tube medium/light confirming to IS 1161 / 1239
with forged end blades welded at both ends.
Standard sizes available are 1.2mtr, 1.5mtr, 1.8mtr, 2.0mtr, 2.5mtr.
H FRAMES
STANDARD SIZE 2000mm X 1000mm
Made out of 2 vertical tubes of 2 horizontal tubes of 42OD/48OD.
Lock pins 5/8 round rod provided on vertical members facilities interlocking of
cross braces.
spigots provided on top/bottom facilities easy assembly of frames.

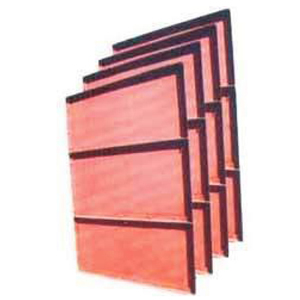

Shuttring Sheet (Centering sheet)
Sheettering Sheet Is Main Supporting Component In The
Farm Work For Construction Of The Slab & Beam Etc. Specifications:
size - 3 x 2 feet
L angle frame - 25 x 4 mm
Thickness
Sheet - 14 Guage(2mm)
Weight - 15.2 - 15.5 kg

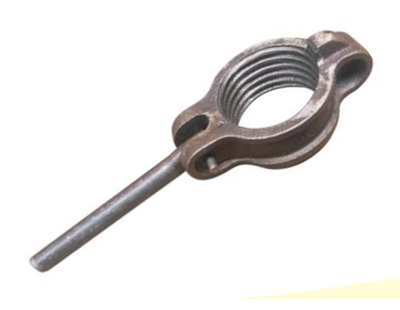

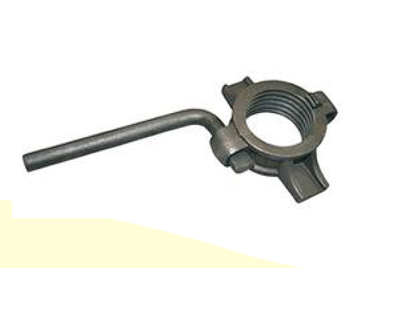

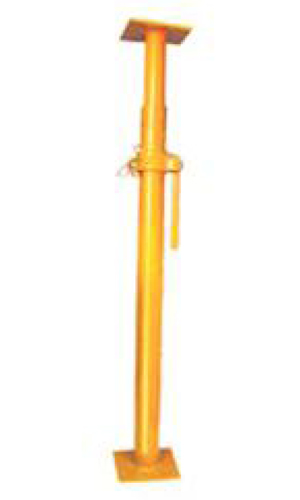

Telescopic Props
We at metro scaffolding manufacturing a wide range
of Telescopic props.
Size
Min ht
Max ht
Weight
TPS-1
1.5m
2.75m
15.5kg
TPS-2
2.0m
3.25m
16.5kg
TPS-3
2.0m
3.75m
17.5kg
TPS-4
3.0m
4.80m
21.5kg
Specifications:
Manufactured using steel tubes
conforming ISI Standards
Plates 150 x 150 x 5mm
Outer Pipe 50NB[60.3mm OD]medium
class
Inner Pipe 40NB[48.3mm OD] medium
class
ACCROW SPAN
Adjustable Accrow Spans are widels used
for Self supporting runners. Specifications:
Main body of outer and inner
is of 14/12 guage MS sheet
Outer member bottom 50x6 ms
plate
Inner T angle 40 x 40 x 6
Inner T angle
Scaffolding stair case tower

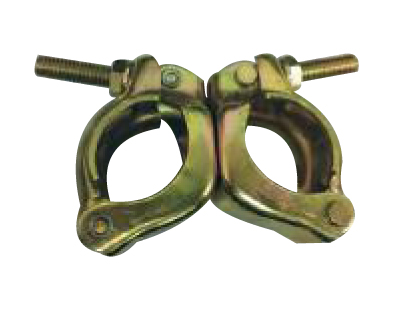

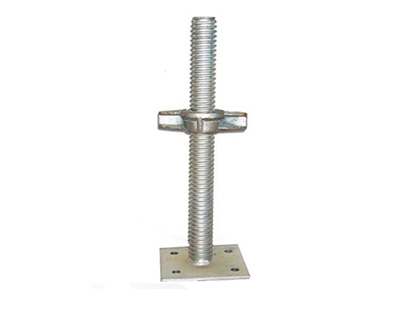

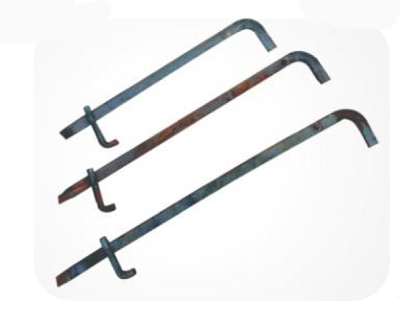

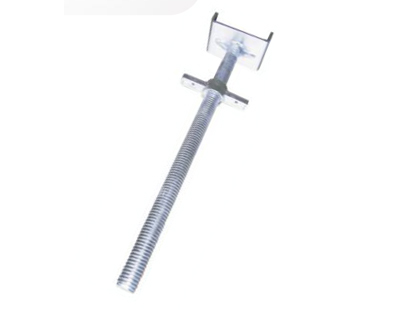

Scaffoldings Accessories
