Aluminium Scaffolding Systems

METRO - FIT

Aluminium Scaffolding Systems

Metro Fit Range Aluminium Scaffolding System Are Made Of Strong Aluminium Alloy It Has A Modular Desigh Structure Which Is Easy To Install

The Scaffold Is Designed To Work At Height By Professionals Who Consider At Most Safty For Work

1. Quick Fit Braces

The Braces Are Designed With a Spring Lock Mechanism For Easy Clamping.

2. Ribbed Frame Rungs

Provide Extra Strength And Also Are Slip Resistant.

3. Customisable Design

The Scaffold Can Be Designed And Manufactured According To Clint Specification.

4. Safe Access

Designed With 6063 Aluminium Grade Alloy Which Provides Long Life And Durability.

Aluminium Scaffolding Suppliers in Bangalore
Aluminium Scaffolding in Bangalore

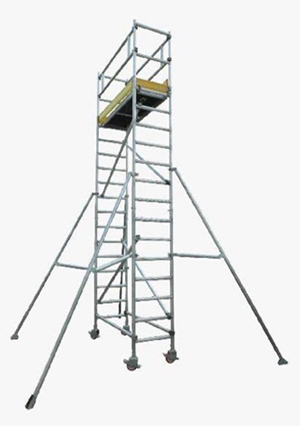

SINGLE WIDTH SCAFFOLD

WIDTH: 0.7 MTR
LENGTH: 1.8 MTR

MODEL NO ALN 1 ALN 2 ALN 3 ALN 4 ALN 5 ALN 6 ALN 7 ALN 8 ALN 9 ALN 10
PLATFORM HEIGHT 2.4 3.5 4.4 5.5 6.4 7.5 8.4 9.5 10.4 11.5
OVERALL HEIGHT 3.4 4.5 5.4 6.5 7.4 8.5 9.4 10.5 11.4 12.5
WORKING HEIGHT 4.4 5.5 6.4 7.5 8.4 9.5 10.4 11.5 12.4 13.5
Aluminium Scaffolding Manufacturers in Bangalore

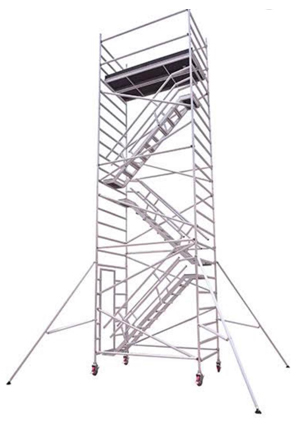

DOUBLE WIDTH SCAFFOLD

WIDTH: 1.35 MTR
LENGTH: 1.8 MTR

MODEL NO ALN 1 ALN 2 ALN 3 ALN 4 ALN 5 ALN 6 ALN 7 ALN 8 ALN 9 ALN 10
PLATFORM HEIGHT 2.4 3.5 4.4 5.5 6.4 7.5 8.4 9.5 10.4 11.5
OVERALL HEIGHT 3.4 4.5 5.4 6.5 7.4 8.5 9.4 10.5 11.4 12.5
WORKING HEIGHT 4.4 5.5 6.4 7.5 8.4 9.5 10.4 11.5 12.4 13.5
